TSC101AILT Current Sense Amplifier IC 1 Circuit SOT-23-5

Brand Name : ST

Model Number : TSC101AILT

Certification : RoHS

Place of Origin : STMicroelectronics

MOQ : 3000 PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10K PCS

Delivery Time : 2-3 DAYS

Packaging Details : 3000 PCS/Tape

Product Number : TSC101AILT

Manufacturer : STMicroelectronics

Category : Instrumentation, OP Amps, Buffer Amps

Amplifier Type : Current Sense

Number of Circuits : 1

Slew Rate : 0.9V/µs

-3db Bandwidth : 500 kHz

Current - Input Bias : 5.5 µA

Voltage - Input Offset : 200 µV

Current - Supply : 165µA

Current - Output / Channel : 60 mA

Voltage - Supply Span (Min) : 4.V

Voltage - Supply Span (Max) : 24V

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

TSC101AILT Current Sense Amplifier IC 1 Circuit SOT-23-5

Description:

The TSC101 measures a small differential voltage on a high-side shunt resistor and translates it into

a ground-referenced output voltage. The gain is internally fixed.

Quick Detail:

Manufacturer	STMicroelectronics
Manufacturer Product Number	TSC101AILT
Description	IC CURR SENSE 1 CIRCUIT SOT23-5
Detailed Description	Current Sense Amplifier 1 Circuit SOT-23-5

Product Attributes:

TYPE	DESCRIPTION
Category	Instrumentation, OP Amps, Buffer Amps
Mfr	STMicroelectronics
Product Status	Active
Amplifier Type	Current Sense
Number of Circuits	1
Slew Rate	0.9V/µs
-3db Bandwidth	500 kHz
Current - Input Bias	5.5 µA
Voltage - Input Offset	200 µV
Current - Supply	165µA
Current - Output / Channel	60 mA
Voltage - Supply Span (Min)	4 V
Voltage - Supply Span (Max)	24 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
Base Product Number	TSC101

Additional Resources:

ATTRIBUTE	DESCRIPTION
Other Names	497-6945-1
	497-6945-2
	497-6945-6
	TSC101AILT-ND
Standard Package	3000

Features

■ Independent supply and input common-mode voltages

■ Wide common-mode operating range: 2.8 to 30 V

■ Wide common-mode surviving range: -0.3 to 60 V (load-dump)

■ Wide supply voltage range: 4 to 24 V

■ Low current consumption: ICC max = 300 µA

■ Internally fixed gain: 20 V/V, 50 V/V or 100 V/V

■ Buffered output

Applications

■ Automotive current monitoring

■ Notebook computers

■ DC motor controls

■ Photovoltaic systems

■ Battery chargers

■ Precision current sources

Data Picture:

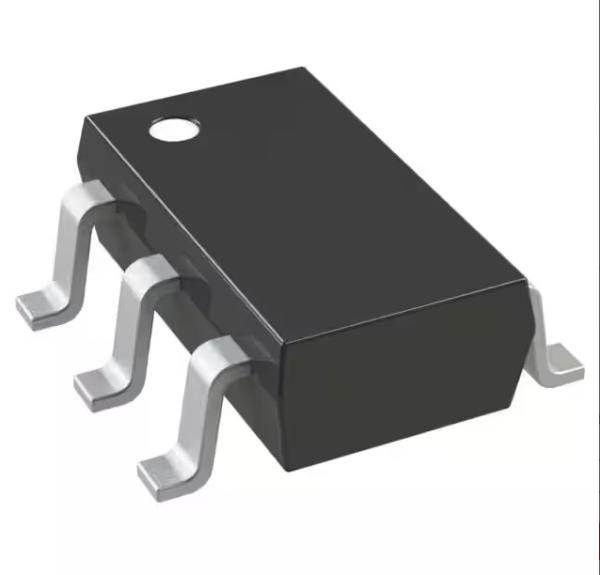

TSC101AILT Current Sense Amplifier IC 1 Circuit SOT-23-5

Product Tags:

TSC101AILT

Current Sense Amplifier IC

current amplifier ic
